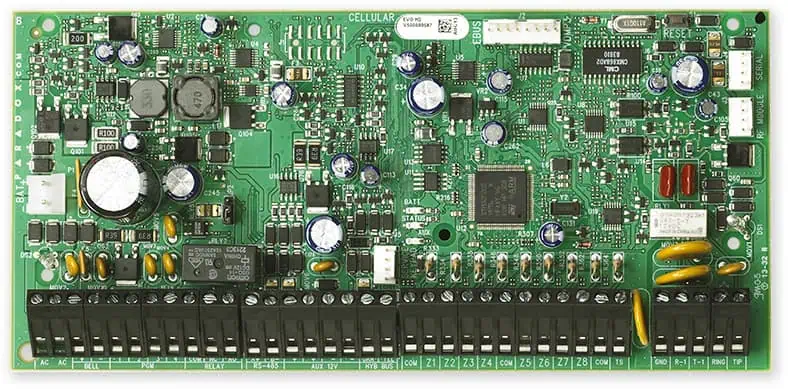

The Paradox EVOHD+ Enhanced EVOHD Control Panel is a security system control panel designed for comprehensive monitoring and management of security devices.

Key Features

• EVOHD+ is an enhanced version of the EvoHD. It provides: TTwo Serial Ports: Both communicate 2X faster compared to previous Evo panels. Serial one performs as the main reporting channel and Serial 2 as a backup channel. The + series also provides safer and faster upgrades. New robust hardware and new power supply with Gel Cell batteries discharge care. New Bus Module Management. The EVOHD+ has a 2.5A auxiliary power capacity (requires 70 VA transformer for full 2.5A aux) and deep discharge battery protection care increasing the discharge.
• The control panel's redundant communication methods generate reports to the Central Monitoring System (CMS) over IP, GSM, GPRS, landline or any combination.Designed for easy installation and expansion of additional products, the EVOHD can support up to 254 security devices and 192 zones. The control panel's flexible zone assignment allows any detector to be assigned to any zone regardless of the physical location of the connection.
• EVOHD Key Features
• Faster - dialer over VOIP lines at 1200 baud
• Efficient battery charging - up to 1.5A
• Power supply
• 2.5A switching
• 2A power available for modules/devices (requires a 75VA transformer)
• Digital bus
• Provides continuous power, management and two-way communication between control panel and modules
• Efficient and effective use of zone deployment
• Integrated tamper reporting of EVOHD connected devices without additional wiring
• PGM configuration
• 4 on-board, solid-state PGMs (2-4)
• 1 on-board 5A relay
• PGMPGM1 may be used as a 2-wire smoke input
• Specification
• Zones 192
• Partitions 8
• Users 999
• On-board PGMs* 5
• Modules 254
• Dimensions 9.5 cm x 20.2 cm (3.75 in x 7.94 in)
• Weight 0.49 lbs (0.22 kg)
• Metal Box 28 cm x 28 cm x 7.6 cm (11 in x 11 in x 3 in)
