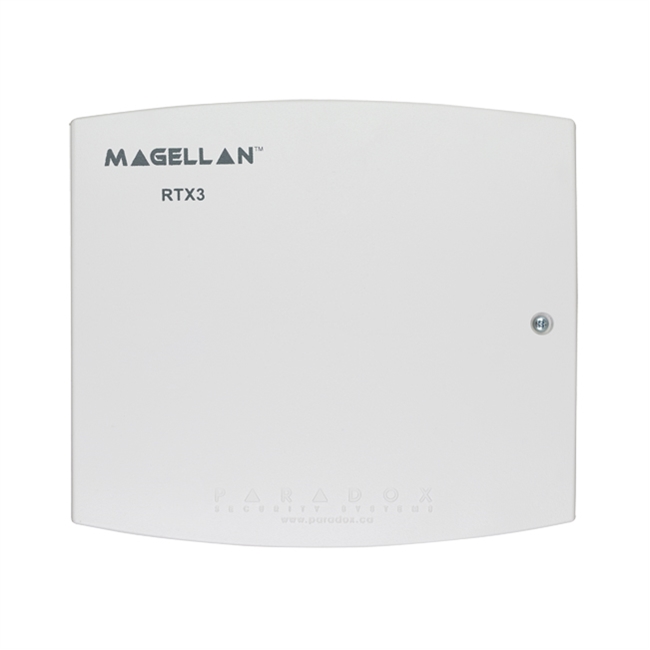

Paradox RTX3 | Magellan Wireless Expansion Module
Wireless Expansion Module
Compatible with 728ULT, 738ULT, Spectra SP Series, Digiplex and Digiplex EVO
32 wireless zones (Spectra SP and EVO only)
Maximum number of remote controls: 8 w/Esprit, 32 w/SP, 999 w/EVO
Remote control compatibility
EVO: REM1, REM2
SP: REM1, REM2, REM3
Esprit: REM1
Stand Alone: REM1
Wireless PGMs (8 w/EVO, 16 w/SP)
Functions with all MAGELLAN transmitters including 2WPGM
Supports two RPT1 and eight K32LRF / K32IRF (Spectra SP only)
In-field firmware upgradeable via CV4USB and Winload
RF jamming supervision
Low battery, tamper and check-in supervision
Transmitter signal strength display
3 PGM outputs and 1 optional output
Noise level test and indicator
The Paradox RTX3 is a Magellan Wireless Expansion Module designed for security systems. It supports up to 32 wireless zones and can accommodate multiple remote controls, depending on the system used. This module is compatible with various Paradox systems, including the 728ULT, 738ULT, Spectra SP Series, and Digiplex. It features RF jamming supervision and low battery alerts, enhancing security and usability.
The Paradox RTX3 is a wireless expansion module for security systems, suitable for users needing to expand their existing security setup with additional wireless zones and remote controls.
- Product Name: Paradox RTX3
- Type: Wireless Expansion Module
- Compatible with: 728ULT, 738ULT, Spectra SP Series, Digiplex, and Digiplex EVO
- Supports up to 32 wireless zones (Spectra SP and EVO)
- Maximum remote controls: 8 with Esprit, 32 with SP, 999 with EVO
- Features RF jamming supervision and low battery alerts
| Feature | Details |
|---|---|
| Compatibility | 728ULT, 738ULT, Spectra SP Series, Digiplex, Digiplex EVO |
| Wireless Zones | Up to 32 (Spectra SP and EVO only) |
| Remote Controls | 8 w/Esprit, 32 w/SP, 999 w/EVO |
| PGM Outputs | 3 outputs + 1 optional |
| Firmware Upgrade | CV4USB and Winload |
- May be suitable for users looking to expand their security system with additional wireless zones.
- Can be used by those who require multiple remote controls for their security setup.
- Ideal for users needing enhanced supervision features like RF jamming and battery alerts.
- Paradox RTX3 Wireless Expansion Module
- Installation Manual
- Warranty Information
We offer a reliable warranty and support for the Paradox RTX3, ensuring peace of mind with your purchase.
What is the Paradox RTX3?
The Paradox RTX3 is a wireless expansion module for security systems.
What does the Magellan Wireless Expansion Module do?
It expands the capabilities of security systems by adding wireless zones and remote controls.
How many wireless zones can the RTX3 support?
The RTX3 supports up to 32 wireless zones for compatible systems.
What remote controls are compatible with the Paradox RTX3?
It is compatible with various remote controls, including REM1, REM2, and REM3, depending on the system.
What features does the RTX3 offer for security supervision?
It includes RF jamming supervision, low battery alerts, and signal strength display.
Who can benefit from using the Paradox RTX3?
Users looking to enhance their security systems with more wireless zones and remote control options may benefit from this module.
The Paradox RTX3 is a Magellan Wireless Expansion Module designed for security systems. It supports up to 32 wireless zones and can accommodate multiple remote
Key Features
- Wireless Expansion Module
- Compatible with 728ULT, 738ULT, Spectra SP Series, Digiplex and Digiplex EVO
- 32 wireless zones (Spectra SP and EVO only)
- Maximum number of remote controls: 8 w/Esprit, 32 w/SP, 999 w/EVO
- Remote control compatibility
- EVO: REM1, REM2
- SP: REM1, REM2, REM3
- Esprit: REM1
- Stand Alone: REM1
- Wireless PGMs (8 w/EVO, 16 w/SP)
- Functions with all MAGELLAN transmitters including 2WPGM
- Supports two RPT1 and eight K32LRF / K32IRF (Spectra SP only)
- In-field firmware upgradeable via CV4USB and Winload
- RF jamming supervision
- Low battery, tamper and check-in supervision
- Transmitter signal strength display
- 3 PGM outputs and 1 optional output
- Noise level test and indicator
