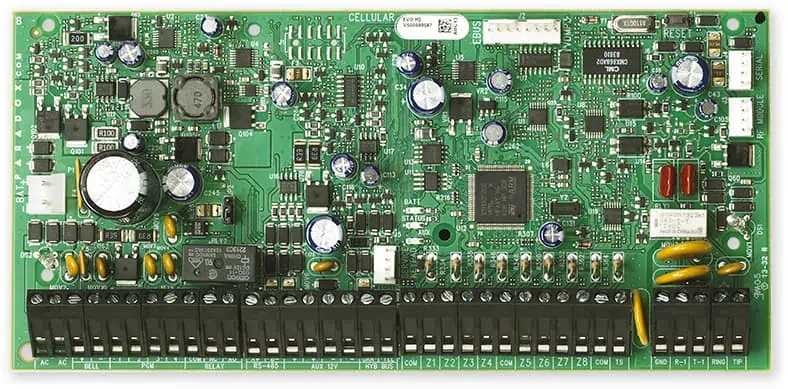

Paradox EVOHD+ Enhanced EVOHD Control Panel

EVOHD+ is an enhanced version of the EvoHD. It provides: TTwo Serial Ports: Both communicate 2X faster compared to previous Evo panels. Serial one performs as the main reporting channel and Serial 2 as a backup channel. The + series also provides safer and faster upgrades. New robust hardware and new power supply with Gel Cell batteries discharge care. New Bus Module Management. The EVOHD+ has a 2.5A auxiliary power capacity (requires 70 VA transformer for full 2.5A aux) and deep discharge battery protection care increasing the discharge.

The control panel's redundant communication methods generate reports to the Central Monitoring System (CMS) over IP, GSM, GPRS, landline or any combination.Designed for easy installation and expansion of additional products, the EVOHD can support up to 254 security devices and 192 zones. The control panel's flexible zone assignment allows any detector to be assigned to any zone regardless of the physical location of the connection.

EVOHD Key Features

Faster - dialer over VOIP lines at 1200 baud
Efficient battery charging - up to 1.5A
Power supply
2.5A switching
2A power available for modules/devices (requires a 75VA transformer)
Digital bus
Provides continuous power, management and two-way communication between control panel and modules
Efficient and effective use of zone deployment
Integrated tamper reporting of EVOHD connected devices without additional wiring
PGM configuration
4 on-board, solid-state PGMs (2-4)
1 on-board 5A relay
PGMPGM1 may be used as a 2-wire smoke input
Specification
Zones 192
Partitions 8
Users 999
On-board PGMs* 5
Modules 254
Dimensions 9.5 cm x 20.2 cm (3.75 in x 7.94 in)
Weight 0.49 lbs (0.22 kg)
Metal Box 28 cm x 28 cm x 7.6 cm (11 in x 11 in x 3 in)
