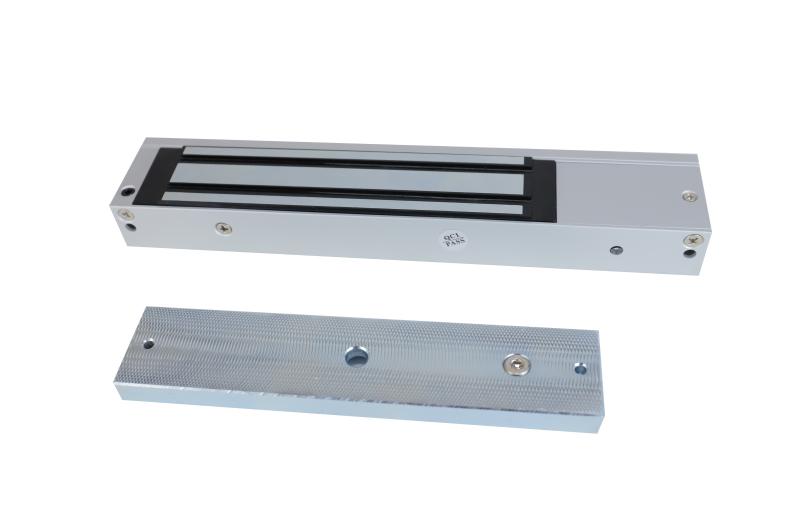

Value Magnetic Locks
قوة التثبيت:
550 كجم (حوالي 1200 رطل) – مناسبة للأبواب الثقيلة والخارجية.
الجهد الكهربائي:
12VDC ±10% (يعمل على تيار مستمر فقط).
استهلاك التيار:
480mA عند 12VDC – استهلاك منخفض نسبيًا.
مؤشر LED:
ضوء يوضح حالة القفل (تشغيل أو طاقة).
مستشعر حالة الباب:
يكشف ما إذا كان الباب مغلقًا أو مفتوحًا (Door Status Sensor).
نطاق درجة الحرارة:
من -10°C إلى +55°C – مناسب للبيئات الداخلية والخارجية المعتدلة.
الرطوبة المسموح بها:
من 0% إلى 90% بدون تكاثف.
أبعاد القفل:
250 × 48 × 25 مم – حجم قياسي للتثبيت السطحي.
مادة التصنيع:
هيكل من الألومنيوم المؤكسد المقاوم للصدأ والتآكل.
التوافق:
متوافق مع أنظمة التحكم في الدخول من Hikvision أو أنظمة أخرى للتحكم في الأبواب.
The Value Magnetic Locks are designed for heavy-duty applications, providing a robust locking solution for both indoor and outdoor doors. With a powerful holding force of 550 kg, these locks ensure maximum security for your premises.
Engineered for efficiency, the locks operate on a 12VDC power supply and feature a low current consumption of 480mA, making them an ideal choice for energy-conscious users.
- Product Name: Value Magnetic Locks
- Internal Reference: DS-K4H255S(O-STD)
- Holding Force: 550 kg (approximately 1200 lbs)
- Power Supply: 12VDC ±10%
- Material: Anodized aluminum
- Temperature Range: -10°C to +55°C
- Humidity Tolerance: 0% to 90% without condensation
| Specification | Details |
|---|---|
| Power Supply | 12VDC ±10% |
| Current Consumption | 480mA at 12VDC |
| Holding Force | 550 kg |
| Temperature Range | -10°C to +55°C |
| Humidity Range | 0% to 90% |
| Dimensions | 250 × 48 × 25 mm |
| Material | Anodized aluminum |
| Compatibility | Hikvision access control systems |
- May be suitable for securing heavy doors in commercial settings.
- Can be used in outdoor environments due to its weather-resistant design.
- May be used with access control systems for enhanced security.
- Value Magnetic Lock
- Mounting hardware
- User manual
This product comes with a standard warranty, ensuring you receive support and assistance for any manufacturing defects.
What is the holding force of Value Magnetic Locks?
The holding force is 550 kg (approximately 1200 lbs).
What power supply do Value Magnetic Locks require?
They require a 12VDC power supply.
What materials are Value Magnetic Locks made from?
They are made from anodized aluminum, which is resistant to rust and corrosion.
What temperature range can Value Magnetic Locks operate in?
They can operate in temperatures ranging from -10°C to +55°C.
What is the humidity tolerance of Value Magnetic Locks?
They can tolerate humidity levels from 0% to 90% without condensation.
Value Magnetic Locks are heavy-duty locking devices designed for securing doors. They provide a holding force of 550 kg (approximately 1200 lbs), making them suitable for heavy and outdoor doors. The locks operate on a 12VDC power supply and feature an LED indicator for lock status. They are made from anodized aluminum, ensuring resistance to rust and corrosion, and can function in temperatures ranging from -10°C to +55°C.
Value Magnetic Locks are heavy-duty locks suitable for securing heavy and outdoor doors. They are designed for use with access control systems and can operate in various environmental conditions.
